Description
JECS-NU591B / 산업용 미니PC
인텔 N3160 CPU + 4G RAM + 128G SSD + DC12V 파워
Triple Display / -20~70도 / 디지털 사이니지 / 산업용 컴퓨터
*선택 옵션 : Wi-Fi / Windows 7,10
[Features]
• Fanless Embedded Barebone System
• Fanless Black Aluminum Enclosure
• Intel Celeron N3160 Quad-core SoC
• Supports DDR3L-1600 SODIMM up to 8GB Total
• 2 x HDMI + 1 * DisplayPort (4K @30Hz)
• 1 x Full-size mSATA/mini-PCIE Shared Slot
• 1 x Half-size mini-PCIE Slot (or WIFI installed)
• 2 x Intel Gigabit LAN, 4 * USB 3.0 Ports
• 1 x Serial (RS232/422/485), SIM Card Holder
• HD Audio , Watchdog Timer, 12V DC-in Jack

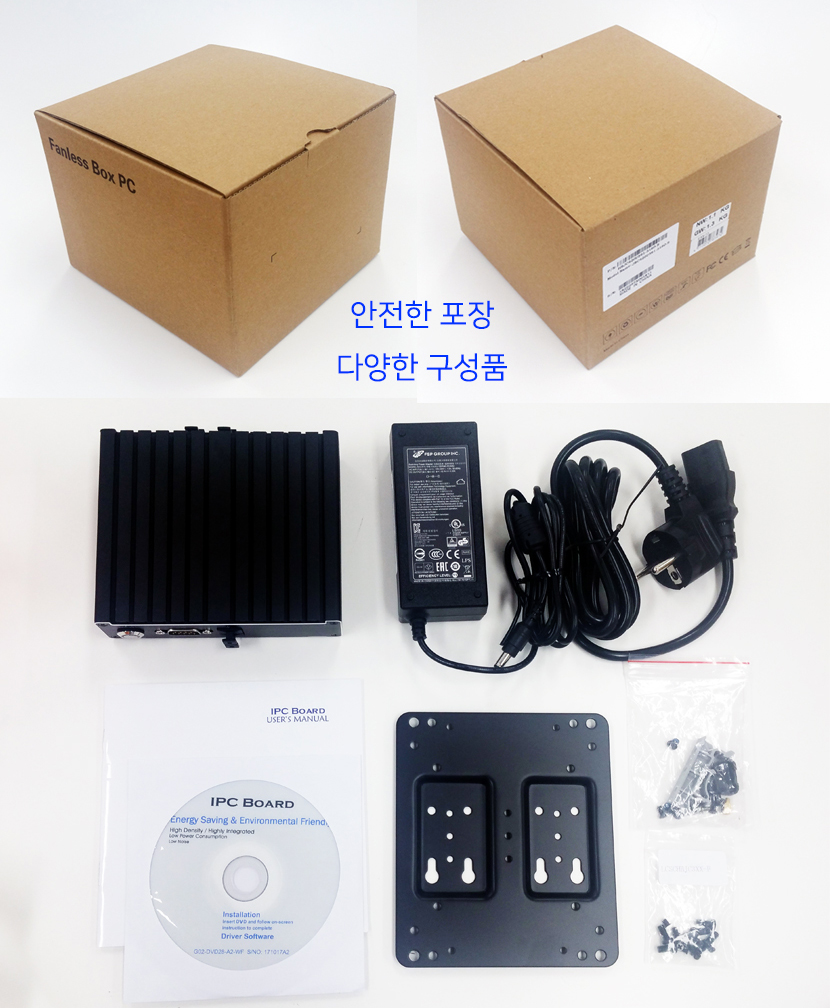

• Includes Wall Mount + VESA Mount + DIN Rail Mount kit and DIN Rail Clip
• Dimension 34 x 109 x 129mm (1.34” x 4.3” x 5.08”)

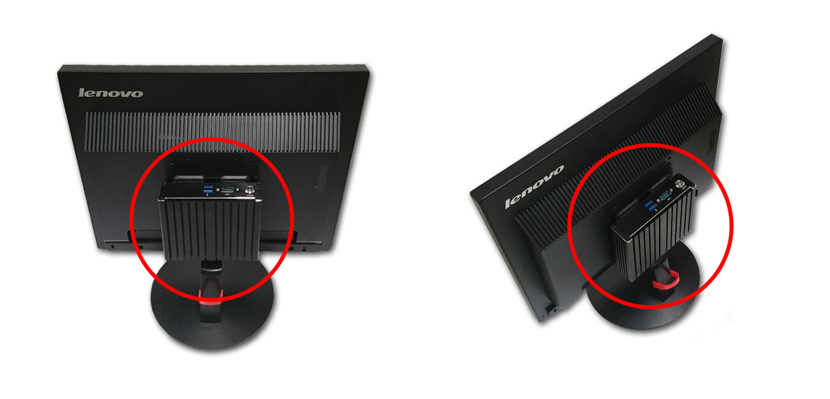

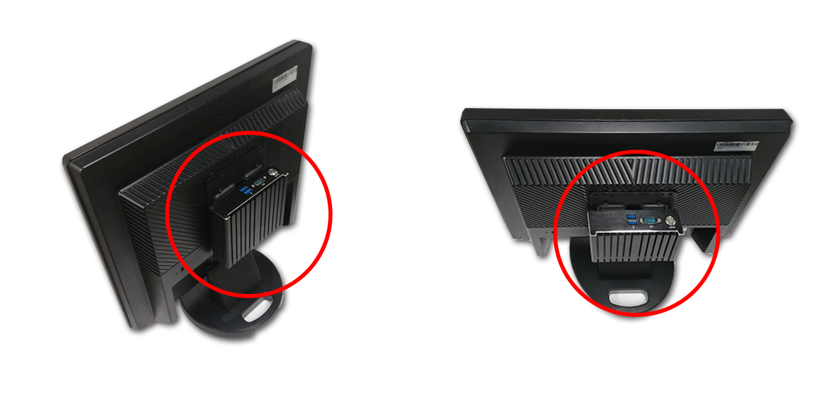

JECS-NU591B 브라켓 모니터 장착 실물 사진
(브라켓은 제품에 포함되어 있습니다.)
VESA Mount 75x75mm, 100x100mm 장착 가능합니다.
75x75m
100x100m
[Specification]
|
CPU |
Intel® Braswell N3160 SoC Processor Quad Core 2.24GHz |
|
RAM |
1x DDR3L SO-DMM up to 8GB |
|
Storage |
1x half size Mini PCIE slot 1x half size Mini PCIE slot for Mini PCIE / mSATA Device 1x SIM card holder |
|
I/O |
1x COM, 4 x USB 3.0 2x 1Gbps LAN, 1 x Wi-Fi (Option) 1x Line Out / MIC Combo |
|
Display |
2x HDM, 1 x DP, Triple Display |
|
OS |
Windows, Linux |
|
Dimension |
129 x 109 x 34 (mm) |
|
Power |
12V DC-In Jack |
| 젝스컴퍼니 쇼핑몰 |
|
* RAM 4G : https://www.ipcpart.co.kr/goods/view?no=155 (네이버 N Pay 결제 가능) |
