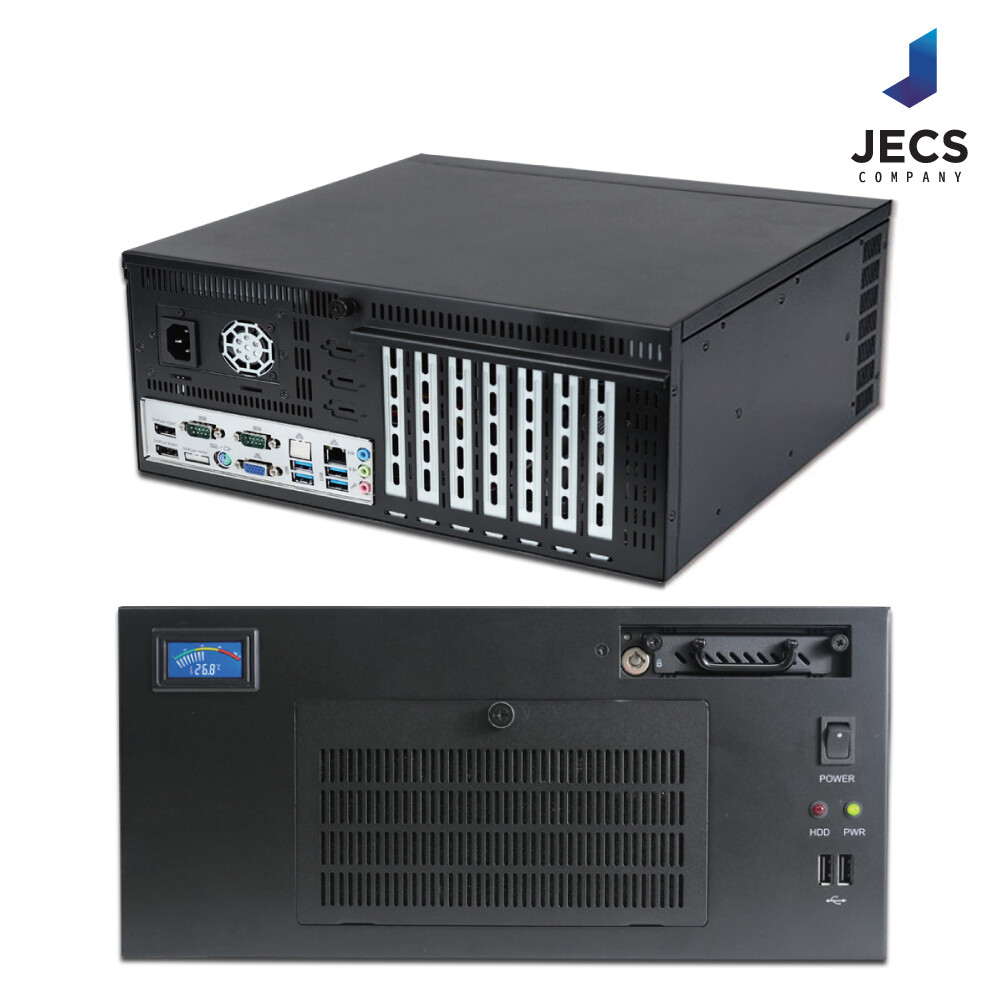

산업용PC, JECS-791JC973 Intel i7-6700CPU 8G/128G/400W

Description

[산업용미니PC 누적 판매 5,000대 돌파]

믿음과 신뢰의 젝스컴퍼니(주)

JECS-791JC973-i7

Intel i7-6700/7700 CPU / 1U Slim 400W Power

1x VGA, 2x DP, 1x LAN, 4x USB 3.0, 2x COM Port (COM 1 – RS232/422/485, COM2 – RS232), 1x PS/2 combo

Option 2x COM Port (RS-232)

3x PCI, 1x PCIe x1, 1x PCIe x4, 1x PCIe x16, 1x mSATA

JECS-791STM771-i7 (온도계와 하드랙 제외된 슬림형)

[Specifications]

	JECS-791JC973-i7
CPU	Intel Core i7-6700/7700 3.4GHz Quad Core Chipset : H110
OS	Windows 7, Windows 10
Memory	2x DDR4 2 Long-DIMM 2133, up to 32GB
Storage	4x SATA (SATA1 shared with mSATA)
Display	VGA, DP
Rear I/O	1x VGA, 2x DP, 1x LAN, 4x USB 3.0, 2x COM Port (COM 1 – RS232/422/485, COM2 – RS232), 1x PS/2 combo Option 2x COM Port (RS-232)
Front I/O	2x USB 2.0, 1x Power Button, 1x Power LED, 1x HDD LED
Expansion Slot	3x PCI, 1x PCIe x1, 1x PCIe x4, 1x PCIe x16, 1x mSATA
Sound	3x Audio Jack (Mic-In, Line-In, Line-Out)
Power	1x 1U Slim Power (400W)
Dimension	339 x 304 x 155 mm 376 x 304 x 155 mm (with Bracket)
Weight	7.5 kg
Operation Temperature	0°C ~ 60°C
